3TEK Bravo Mobile Shredder
BRAVO SHREDDER | |
---|---|
WEIGHT | 311,000 lbs. (141,067 kg) |
LENGTH | 50’0″ (15.2 m) overall |
WIDTH | 14’0″ (4.3 m) |
HEIGHT | 24’0″ (7.3 m) |
LOADING HEIGHT | 20’0″ (6 m) to infeed conveyor belt |

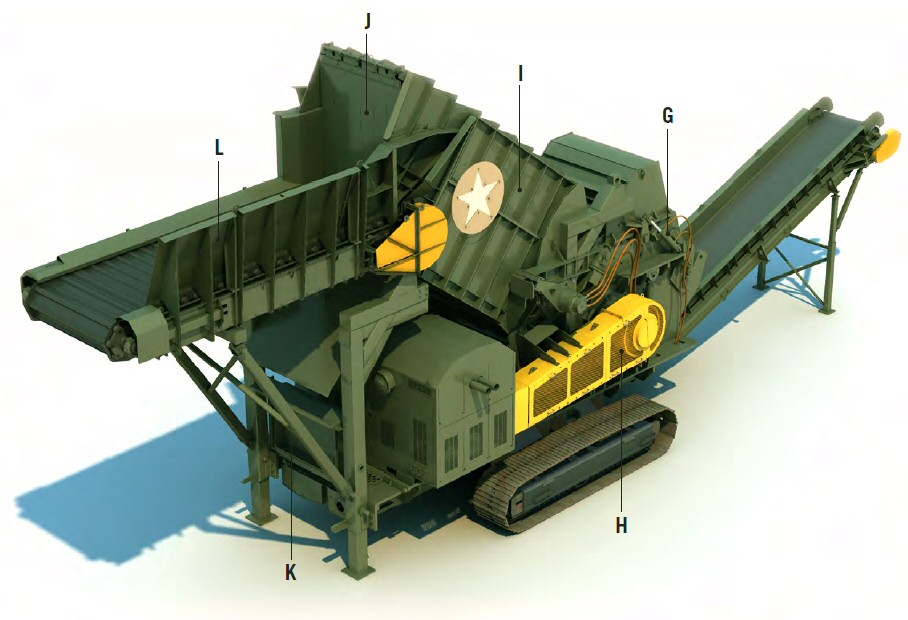

Letter | Description |
---|---|
A | Infeed Conveyor: 19’ (5.9m) L X 6’ (1.8m) W w/interlaced steel belt |
B | CAT C 32 Tier 4 Certified 1125 HP Diesel: 265 g (1,205 L) Fuel tank; integrated clutch, reversible fan |
C | Track Undercarriage: size 345 class |
D | Pin Puller with integrated hydraulic cylinder |
E | Single Feed Roll: 0-15 RPM; 42” (1,067 mm) diameter, 1” (2.54 mm) thick rolled steel |
F | Takeaway Conveyor: 48” (1,200 mm) W X 24’ (7.3 m) L belt |
G | Reject Door: 24” (610 mm) tall for unshreddable discharge |
H | Speed Reducer: Heavy duty pullies with V Belts reduce engine 1750 RPM to Rotor speed of 750 RPM |
I | Feed Ramp: 9’7” (2.9 m) L. Replaceable AR wear plates under feed roll. Metal Cover (removable). |
J | Rubber curtain: Heavy duty to knock down projectiles |
K | Controls: Fully functional, automated adaptive feed control maximizes production. Remote pendant locates in loading operator cab. |
L | High sidewall (interchangeable) to ease loading |
FAQ
Dallas, TX.
- CAT C32 Engine:
- Hp: 1125
- Rating: Tier 4 Certified from Factory
- Clutch
- Cooling Package
- Designed for ambient rating of 125 degrees F
- Included accessories:
- Batteries
- Block Heater and Cold weather starting aids standard
- Drive Train:
- Type: Belt
- Yes, integral
- Design and dimensions:
- 19’ long X 6’wide
- Interlaced Steel track
- Automated using Allen Bradley PLCs
- Runs shredder like cruise control in your car
NO!
- Material Handling Loading operator has pendant controls
